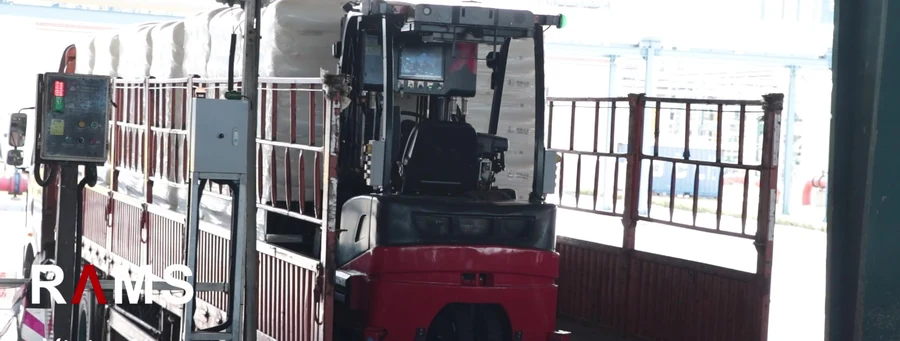

Load and Unload an 18-Wheeler in 5 Minutes
We’re introducing the automated truck loading and unloading system to the United States – an innovative warehouse solution offered by WDX Group. Q-Loader enables loading and unloading a truck in less than 5 minutes without trailer modification.
Q-Loader is a solution designed for warehouses where high productivity and low operating costs are crucial.
Q-Loader let you reduce the number of docks in your warehouse by 5 times while simultaneously automating the unloading and loading processes.
You do not need to rebuild your trailers.

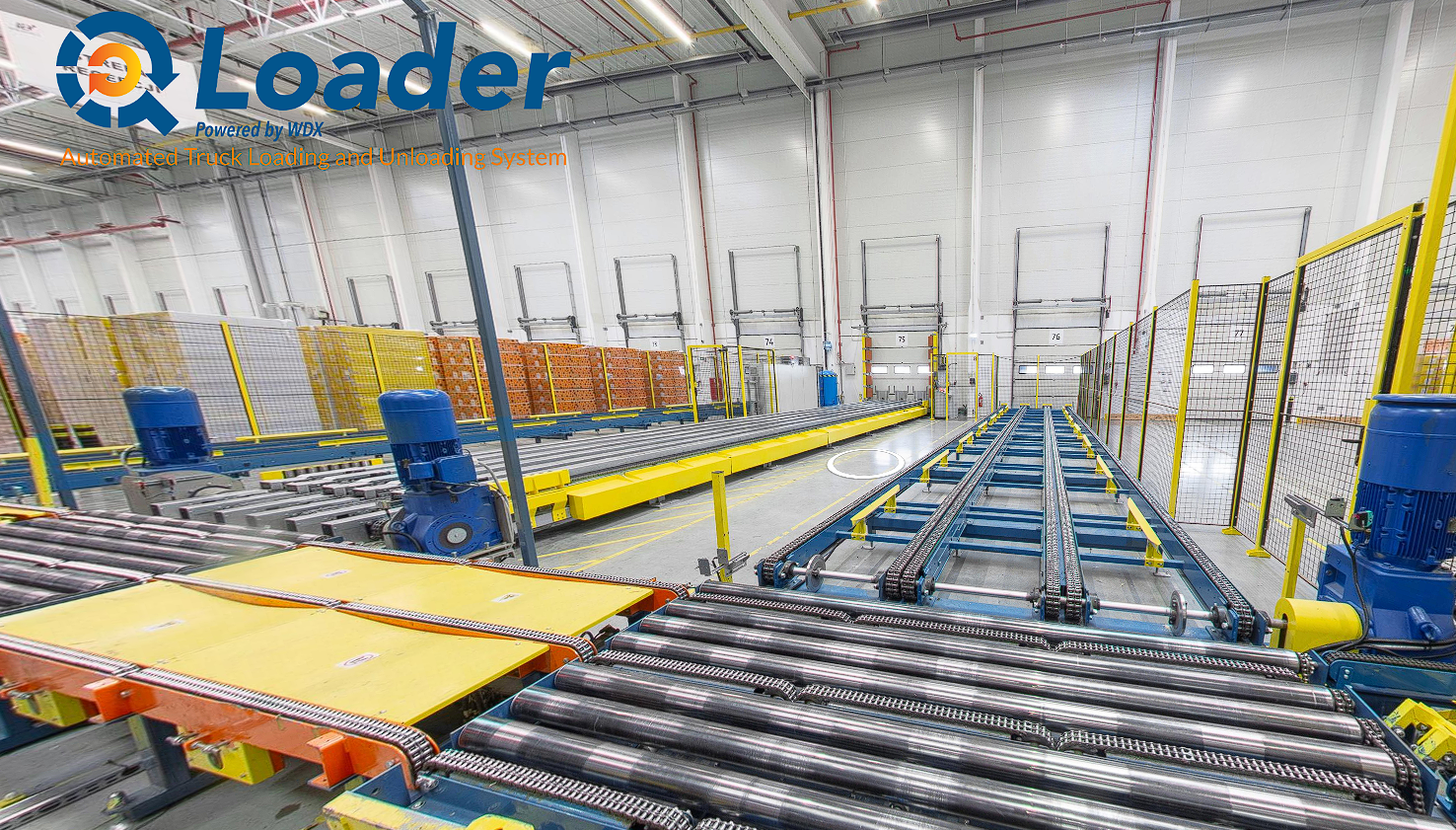

Click on Image Below for Virtual Walk Through
Benefits of Q-Loader
Reduced OS&Ds: Less room for human error means fewer Overages, Shortages, and Damages.
5x Increased Throughput: Q-Loader can drastically increase the throughput of your warehouse, optimizing your operations with Single Minute Exchange of Die (SMED).
Lean Pallet Handling: Handle your goods more efficiently and safely.
ROI in 24 Months or Less: A fast return on your investment, with a MIRR of 25% or greater.

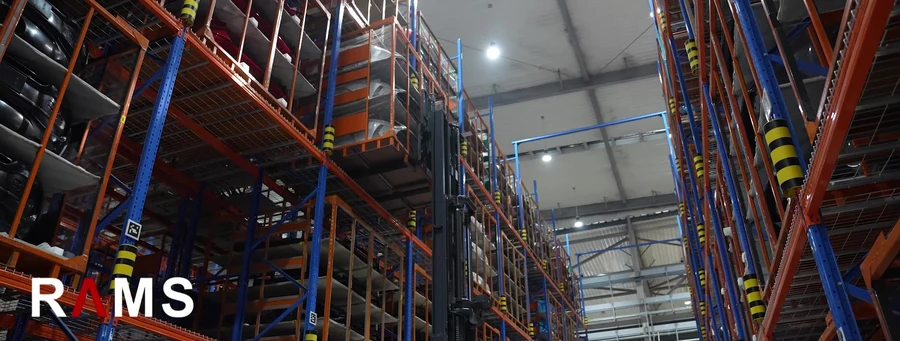

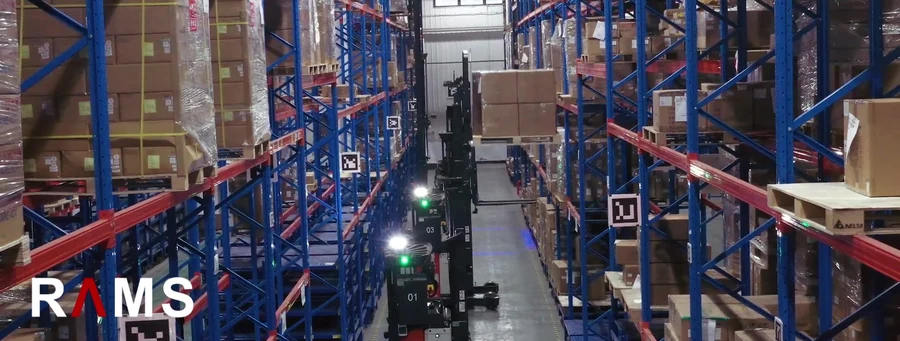

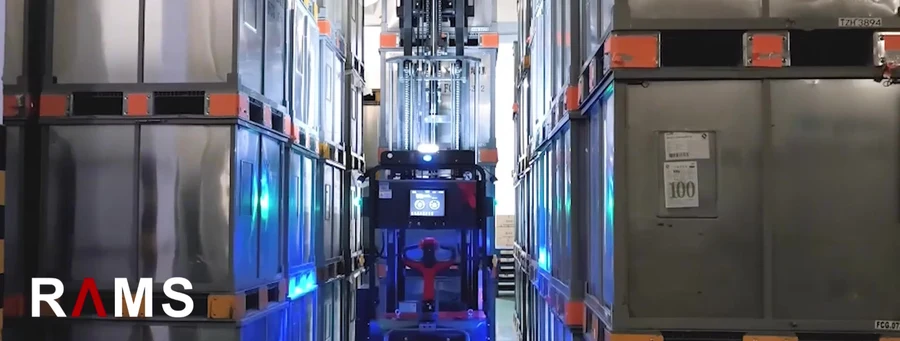

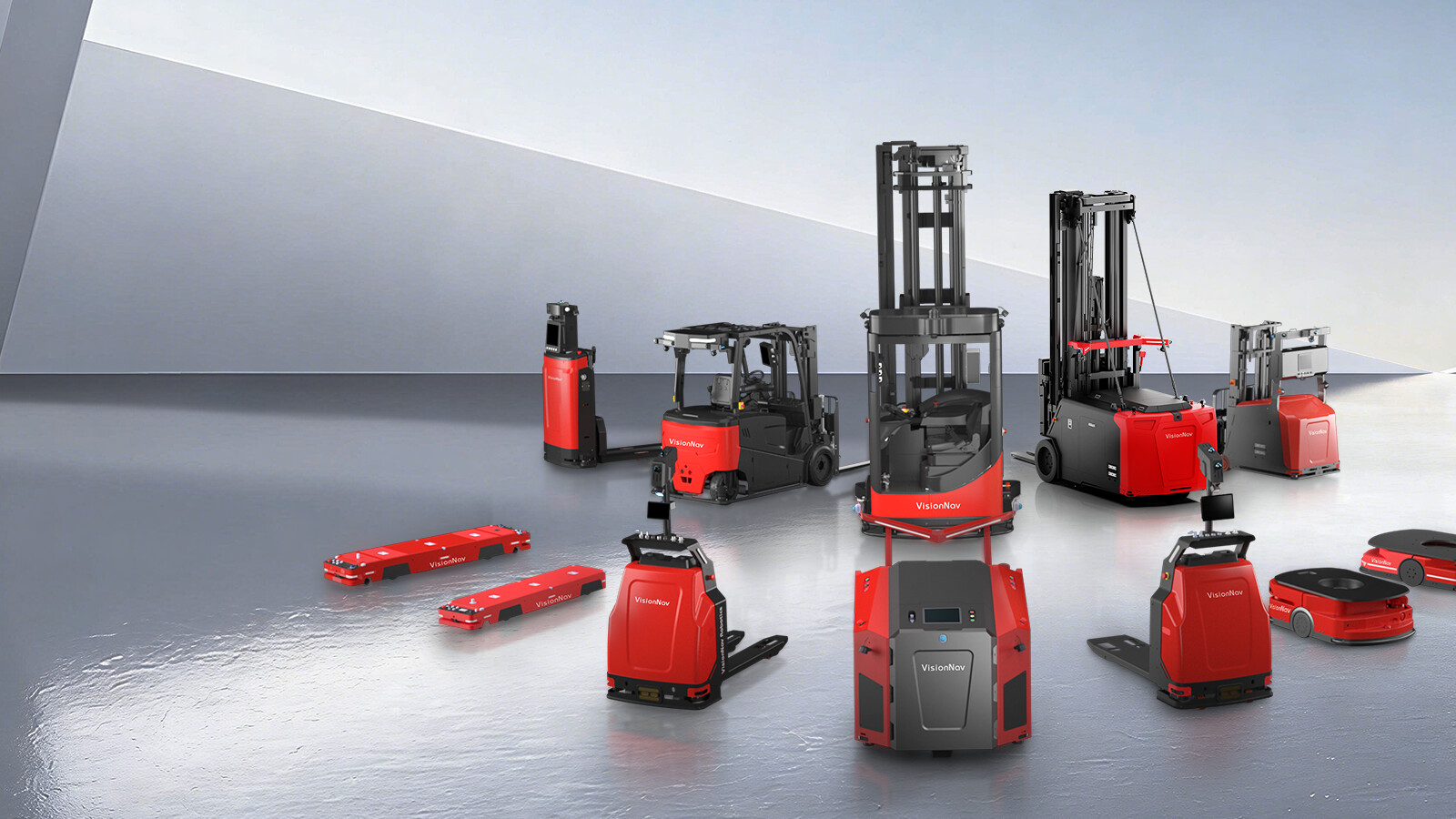

Introducing VersaBox AMRs: The Backbone of a Fully Automated Warehouse

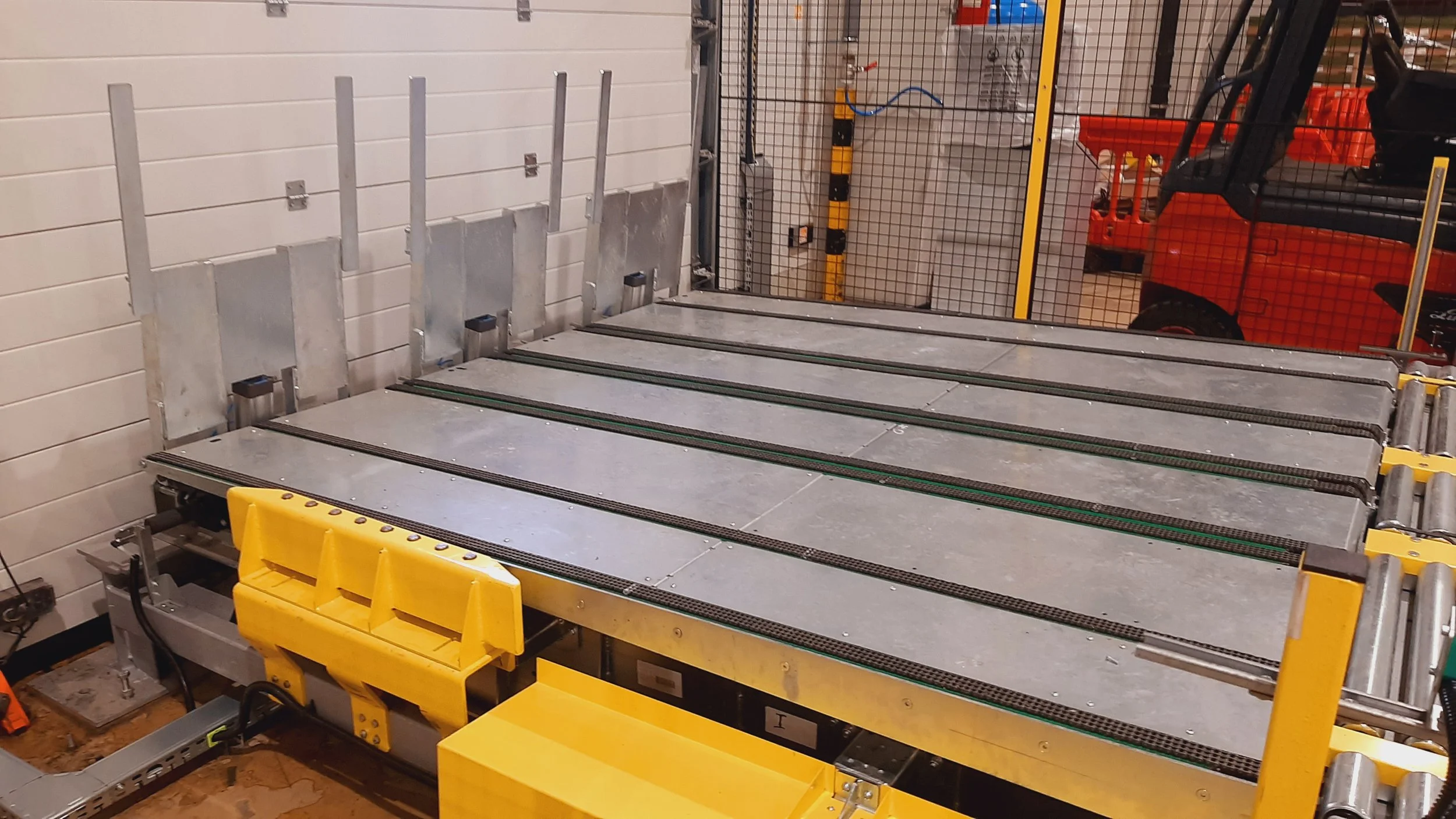

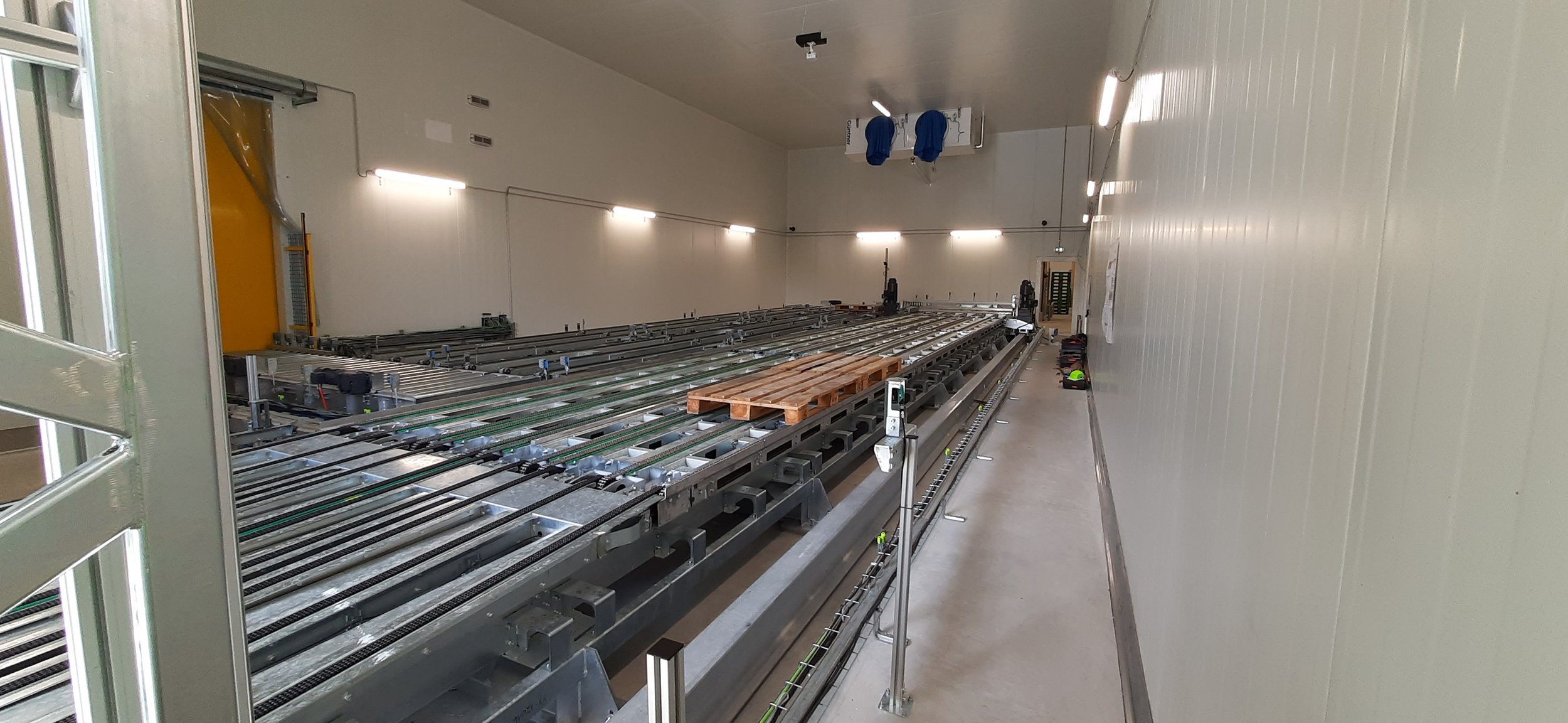

Skate Q-Loader: Automated Outbound Truck Loading
You do not need to rebuild your trailers.
You do not need to change your pallets.
Fulfillment Operations
The Skate Q-Loader system revolutionizes the outbound process by automating everything after manual pallet consolidation. Our system interfaces with pallet jacks to lift two consolidated pallets simultaneously, accommodating mixed pallet builds, and all pallet types. The result is a streamlined workflow that maximizes trailer utilization with 5x throughput capacity out of a single dock door.
Key Benefits for Fulfillment Operations:
Automation After Manual Consolidation: Automates all processes post-pallet consolidation, reducing manual labor and increasing efficiency.
Handles Non-Homogenous Pallets: Effectively manages mixed loads, ensuring smooth operations even with varying SKUs.
Optimized Throughput: Achieve an industry-leading throughput of 4.65 truckloads per hour per dock, maximizing operational efficiency.
Improved Trailer Utilization: Enhances the number of pallets per load, reducing transportation costs and increasing delivery efficiency.
Production Lines
For production lines with automated palletization, the Skate Q-Loader system takes over right after pallets are formed, fully automating staging and loading. It ensures a seamless, high-speed transition from production to outbound logistics, increasing throughput capacity 5X.
Key Benefits for Production Lines:
Complete Post-Palletization Automation: Automates staging and loading immediately after palletization, eliminating the need for manual intervention.
Maximize Cube Volume: Load an FTL with fully turned pallets. This increases cube volume to the maximum that a 53’ trailer would need.
Maximized Throughput: A future state of 4.65 truckloads per hour per dock.
Labor Optimization: Eliminates forklift operators for dock door operation.
Fork Q-Loader Case Study
International Logistics Operator
Central Warehouse
Benefits: Inbound and Outbound Automation
Semi-Automatic Warehouse
Significant Reduction of Damage to Trailers
Reduction in Unloading and Loading Times by over 95%
Significantly Increased Safety in Loading/Unloading Process
Site Data
625,000 sqft
900 SKUs
60,000 Pallets Stored
Throughput of 350 Trucks Per day
RΛMS

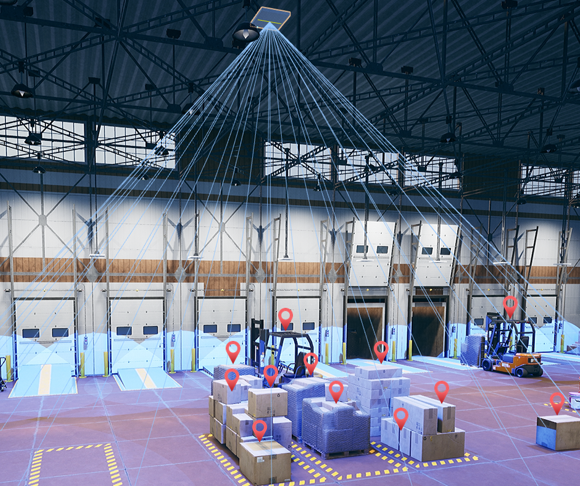

OMNI-SCAN RFID
Passive, Real Time Location Scanning, Overhead RFID Antennas for Warehouses
Benefits of RAMS Omni-Scan
ELIMINATE Hand-Held Scanning: Replaces handheld barcode scanners at the dock, reducing manual labor and improving efficiency.
Always On, Continual Scanning: Provides uninterrupted real-time tracking, ensuring constant visibility of assets.
Accuracy Between 1 - 1.5ft: Achieves precise location tracking with an accuracy range of 1 to 1.5 feet.
Passive Reading: Uses low cost, Passive UHF RFID tags on all assets.
Track Each, Case, and Pallet Level: Monitors individual items, cases, and pallets simultaneously, even in stacked configurations.
Passive Directionality: Automatically know when assets leave or enter the dock door.
Low Cost, Wide Area, High Ceiling: Cost-effective solution covering large areas with high-ceiling installations. Forklifts cannot hit it!
Seamless Integration with WMS: Seamlessly integrates with WMS platforms.
Q-Block: Automated Storage and Retrieval System
The X-PR Shuttle offered by WDX/RAMS are an economical solution that automates storage, optimizes forklift fleet size, and maximizes workforce efficiency. Shuttle racks are distinguished by a favorable cost-to-performance ratio.
Benefits of Q-Block
High Space Utilization: Achieves up to 90% space efficiency, ideal for large, uniform goods through its compact, multi-level tunnel design.
Reduced Costs: Uses a remote-controlled shuttle, decreasing the need for forklifts and personnel.
Increased Safety: Automates pallet handling, reducing forklift-rack interactions and enhancing warehouse safety.
Adaptability and Scalability: Easily adjusts and scales to meet changing needs and various pallet sizes.
Efficiency: Designed for high-speed, high-throughput environments.
Interfaces with the Q-Loader for Automated Putaways and Retrieval
Seamless Integration
Automated Storage: Automate pallet storage and retrieval with high density in a warehouse. Pairs with the Q-Loader seamlessly.
Intelligent Material Flow: Comprehensive material flow control to manage and optimize the movement and storage of materials within facilities.
Adaptable Design: Tailored for North American 40” x 48” pallets with options for custom pallet sizes, ensuring flexibility across different warehouse configurations.
Q-Shuttle
The Q-Shuttle is a next-generation self-driving Pallet Transport Shuttle
Maximum speed without pallet – 1.4 m/s.
Maximum speed with pallet – 1.0 m/s.
Lifting/lowering time – 2.5 seconds.
